HI-TRUCK Porter series
Korea Triaxle Cargo Truck series
Improvement of diversity as well as profitability by PLUS
Cargo,
extension by
+840mm
Main Features
Expanded inner width of loading box to 1,700mm (aluminum only)
Profitability improvement by increased loading space (3 pallets loaded)
Vehicle type: Cargo (steel, aluminum)
Cargo top rail welding allowed
Double cab,
extension by
+675mm
Main features
Profitability improvement by increased loading space
Improved driving stability by extending wheelbase
Vehicle type: Double cab (Steel)

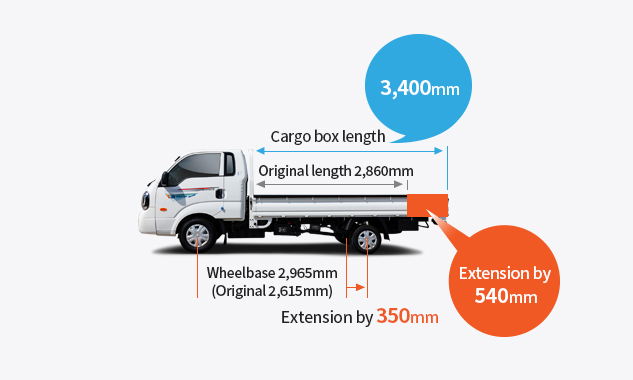

Porter Ⅱ 1 ton long body
Wheelbase extension by 350mm
(Super cab cargo box 3,400mm)
Wheelbase extension by 550mm
(Standard cab / Super cab)
Wheelbase extension by 550mm
(Double cab cargo box 2,860mm)
Korea Triaxle Box truck / Wing-body series
Improvement of diversity as well as profitability by wider loading space

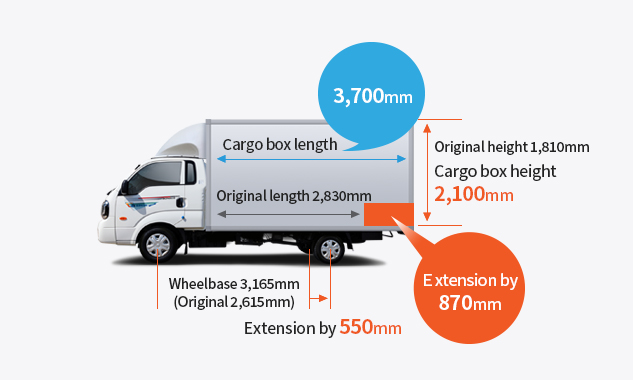

Box truck,
extension by
+870/810mm
Main features
Improved transport efficiency by increasing load capacity due to expansion of inside width and height of cargo box
Manufacture of various types of box trucks and extend the length of loading boxes
Vehicle type: built-in box truck, refrigerated box truck, freezing box truck
Wing-body,
extension by
+850mm
Main features
Cargo box inner width 1,700mm, height up to 2,100mm
Profitability improvement by increased loading space
Vehicle type: wing-body (automatic or manual option)
Porter Ⅱ 1 ton Box vehicle / Wing-body
Wheelbase extension by 350mm
(Built-in box)
Wheelbase extension by 350mm
(Freezing box truck)
Wheelbase extension by 350mm
(Wing-body)
Wheelbase extension by 550mm
(Built-in box)
Wheelbase extension by 550mm
(Freezing box truck)
Wheelbase extension by 550mm
(Wing-body)
HI-TRUCK 1 ton/1.2 ton Bongo series
Korea Triaxle 1 ton / 1.2 ton / 4WD Cargo Truck series
Improvement of diversity as well as profitability by PLUS
1 ton Cargo,
extension by
+840mm
Main features
Expanded inner width of loading box to 1,700mm, cargo top rail welding allowed
Profitability improvement by increased loading space (3 pallets loaded)
Vehicle type: Cargo (steel, aluminum)
1 ton 4X4 double cab,
extension by
+990mm
Main features
Profitability improvement by increased loading space
Increase driving stability with extended accumulation and four-wheel drive
Vehicle type: 4X4 double cab cargo (steel)
Bongo Ⅲ 1 ton long body
Wheelbase extension by 350mm
(King cab cargo box 3,400mm)
Wheelbase extension by 550mm
(Standard cab / King cab)
Wheelbase extension by 550mm
(Double cab cargo box 2,860mm)
Bongo Ⅲ 1.2 ton & 4x4 long body
Wheelbase extension by 550mm Bongo 1.2 ton
(Standard cab / King cab)
Wheelbase extension by 750mm Bongo 4x4
(Standard cab / King cab)
Wheelbase extension by 750mm Bongo 4x4
(Double cab)
Korea Triaxle 1 ton / 1.2 ton Box truck / Wing-body series
Improvement of diversity as well as profitability by wider loading space
1 ton box truck,
extension by
+870/810mm
Main features
Improved transport efficiency by increasing load capacity due to expansion of inside width and height of cargo box
Manufacture of various types of box trucks and extend the length of loading boxes
Vehicle type: built-in box truck, refrigerated box truck, freezing box truck
1 ton Wing-body,
extension by
+680/880mm
Main features
Cargo box inner width 1,700mm, height up to 1,900-2,000mm
Profitability improvement by increased loading space
Vehicle type: wing-body (automatic or manual option)
Bongo Ⅲ 1 ton Box vehicle / Wing-body
Wheelbase extension by 350mm
(Built-in box)
Wheelbase extension by 350mm
(Freezing box truck)
Wheelbase extension by 350mm
(Wing-body)
Wheelbase extension by 550mm
(Built-in box)
Wheelbase extension by 550mm
(Freezing box truck)
Wheelbase extension by 550mm
(Wing-body)
Bongo Ⅲ 1.2 ton Box vehicle / Wing-body
Wheelbase extension by 550mm
(Built-in box)
Wheelbase extension by 550mm
(Freezing box truck)
